SMF 200W | SMA 400W | SMB 600W | SMC 1500W |
 |  |  |  |
SMD 3000W/5000W | PEKE 600W/SA 500W | 1.5KE 1500W | 3KP 3000W /5KP 5000W |
 |  |  |  |
HE /SE 高能量 | |||
 |  |  |  |
这本手册旨在介绍本公司的 TVS 产品和技术数据及应用，帮助使用者正确使用 TVS 保护器件，当然，用户应当独立地评估型号器件是否适合他们的需要 ，并且独立地进行测试 。 音特公司不对信息准确性和完整性作出担保 ，并拒绝承担任何有关其用途的责任 。音特公司只承担在音特标准条款和销售条件中所承诺的义务 ，在任何情况下 ，对于他出售的产品 ，因转认，使用或误用其产品所造成的任何偶发的 、间接的、非直接的损坏，音特公司概不负责 ，
音特公司保留改变或更新任何产品的设计、施工、材料、工艺或规格的权利。并保留停止或限制生产或经销任何产品的权利 ，恕不另行通知 ！
TVS 产品系列 | Pppm (w) | Device | Package | |
Family | Type | |||
200 | SMFJ Series | Surface Mount | SOD-123 (SMF) | |
400 | SMAJ Series | Surface Mount | DO-214AC (SMA) | |
500 | SA Series | Plastic axial | DO-15 | |
600 | SMBJ Series | Surface Mount | DO-214AA (SMB) | |
P6SMBJ Series | Surface Mount | DO-214AA (SMB) | ||
P6KE Series | Plastic axial | DO-15 | ||
1500 | SMCJ Series | Surface Mount | DO-214AB (SMC) | |
1.5KE Series | Plastic axial | DO-201 | ||
3000 | SMDJ Series | Surface Mount | DO-214AB (SMC) | |
3KP Series | Plastic axial | P600 | ||
5000 | 5.0SMDJ Series | Surface Mount | DO-214AB (SMC) | |
5KP Series | Plastic axial | P600 | ||
15000 | 15KP Series | Plastic axial | P600 | |
高能量 | HE Series | Plastic axial | 非常规 | |
SE Series | Plastic axial | 非常规 | ||
产品特点 ：
● 硅雪崩瞬态抑制二极管
● 汽车级瞬态抑制二极管
● 特殊功能瞬态抑制二极管
使用场合：
● 家电 ● 汽车
● 通信 ● 家庭娱乐
● 工业 ● 照明
● 移动设备 ● 个人电脑
Transient Voltage Suppressors （TVS） 常常用于保护易受干扰的电路免遭电气过应用力如静电放电、电感负载开关、感应雷等 ，使用 TVS ，通过一个坚固的硅制 PN 结的雪崩运动，将电压尖峰箝位在一个非破坏性的水平上
TVS 的主要参数：
● VRWM： 工作电压
● VBR ： 关断电压
● VC ： 箝位电压 ● IPP ：最大脉冲电流● IR ： 反向漏流
● PPPM ： 峰值脉冲功率
● C ： 电容
Figure 1. Figure 1. Transients of Several Thousand Volts can be “clamped ” to a Safe Level by the TVS

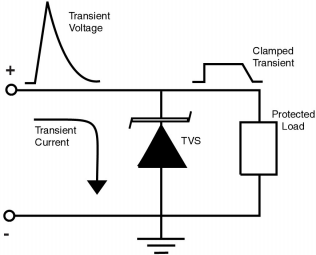

Figure 2. Transient Current is Diverted to Ground Through TVS
在一个电路中 ，TVS 往往是“隐藏 ”的，直到一个瞬态事件出现，其电气参数如：关断电压（VBR），漏流（IR）和电容 C 应不影响电路的正常工作 。
TVS 的 关 断 电 压 （ VBR ） 往 往 高 于 反 向 电 压（VRWM）值的10%
TVS 的浪涌功率和浪涌能力与他的结面积成正比
硅制 TVS 浪涌级别是在一个给定的波形下如8/20uS，由峰值脉冲功率 PPPM 来表示
在所有的 TVS Data Sheets 中，VC 值都有一个对应的 IPP 值 ，当电路中的瞬态 IP 值不同于额定的最大值 ，那么我们怎样来计算此时的 VC 值 呢 ？
VC=(IP/IPP)(VCmax - VBRmax) + VBRmax
Note :Ip = test pulse current
Ipp = max rated pulse current
VCmax=maximum specified clamping voltage VBRmax=upper limit of breakdown voltage
Figure 3. VC vs IPP for SMBJ10A Calculated and Measured
现在一些电气系统如传感器 ，微控制器等常常放置在一些恶劣的环境，如在暴露在闪电、过载开关或其他破坏性瞬态电压 ， 为了保护这些脆弱的电路元件免遭电力过应力损坏 ，一些大功率硅制 TVS 常常作为我们的第一选择，如图四所示

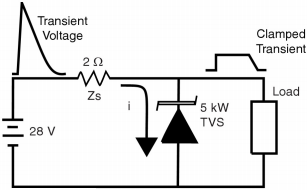

Figure 4. 5 kW TVS
例如：一个28V 压力传感放置在一个可能有140V 的瞬态峰值脉冲，在10/1000 μs 时会有2Ω的源阻抗，这个压力传感器的失效电压是40V ，因此 ，TVS 的箝位电压在40V 甚至更低，可以算出他的 IP 值：
IP =（140V - 40V）/2 Ω = 50 A
选用音特5KP28A ，可以轻易的满足要求 ，
当然 ，也可以有更经济的方法 ，在电路中加一个串联电阻 ，如图五所示

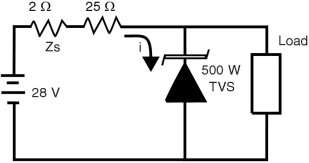

Figure 5. 500 W TVS
传感器的正常工作电流很小（典型值小于20mA ），减少线路中的工作电流 而不会影响传感器的正常工作 ，此时 ，串联一个25 Ω 电阻，可以选用功率更低一点的 TVS
IP = （140V - 40V）/（2 Ω+25 Ω ) =3.7 A
此时 ，可以选用音特公司500W 的 SA28A ，它的 IPP=11A 》3.7A
当然 ，串联电阻会增加功耗 ，须酌情衡量
当破坏性的干扰不止一次的出现在电路的同一处 ，如 ：功率性转换装置，继电器， 电机控制，部件受到周期性的短暂瞬态脉冲，Transient Voltage Suppressor (TVS)能够狠好的解决这问题 ， 不过 ，选用合适的 TVS 是很讲究的 ， TVS 的 PPPM 是在标准脉冲波形下测试的 ，对于持续的瞬态脉冲 ，我们需要计算它的平均稳态功率 ，
例如 ： 在电机驱动电路中 ，通过电机绕组的开关电流会持续地产生一个4ms 25A 脉冲，频率120HZ

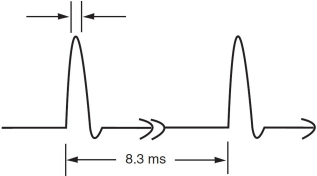

Figure 6. Repetitive Transient Generated by Motor Winding Inductance
我们选用一个 SMBJ6.5A , 它 的 VC 值 为11.2V ,
瞬态功率 P =IP*VC =25A*11.2V=280W周期 T=1/120HZ = 0.0083S
平均功率 Pavg=280W*(0.000004/0.0083) = 0.134 W
SMBJ6.5A 的平均稳态功率至少要大于1 W . 这里选用符合要求 ！
关于周期性的瞬态脉冲 ，需要算出平均稳态功率 Pavg ，再选出符合要求的 TVS 。
Silicon avalanche transient voltage suppressors 在电路保护中提供了一个极大的灵活性 ，这些器件电压从5V 至440V ，功率从200W至15000W , 另外 ，还将高电压和大功率有效的结合，可以串联和并联 。
并联两个及更多的 TVS , 需要提供相同的电压响应（反向工作电压和截止电压和箝位电压）作为一个单元 ，串联 TVS 会提高漏电流 IR , 优点是提高
通流量和功率例如 ：
Figure 7
这里有一个150V 瞬态电压和 150A 的电流，我们选用三个 1.5KE15A , 因为 150A 的通流量要大于单个TVS 的通流量 ，并联后 ，单个TVS 平均分到50A 的电流 ， 而1.5KE15A 的通流量为71A , 并联三个后符合要求
当然 ，由于动态电阻的微小差异 ，每个 TVS 的参数有点不一样 ， 挑选时 ，要注意各单元的匹配
电压很大时 ，可以将 TVS 串联 ,增大电压 ，选用时也要注意匹配的问题
TVS 的一些简单用法

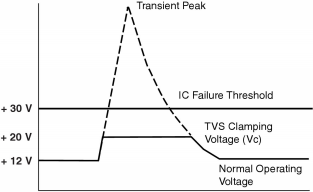

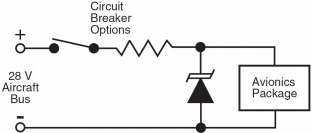

 Figure 8. 28 V D.C. Supply Protection |  Figure 11. Breakdown Voltage Rectifier Protection | |
Figure 9. A.C. Supply Protection |  Figure12. EMI limiting | |

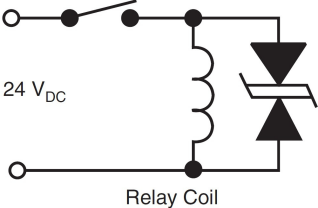

 Figure 10. Relay and Contractor Transient Limiting | Figure13 To improve Insertion Loss |
TVS 尺寸图 ：

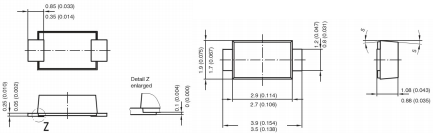

SOD-123 (SMF) |  |  | |||
DO-214A C (SMA) |  |  |  | ||
DO-214A A (SMB) | |  |  | ||
DO-214A B(SMC) |  |  |  | ||
DO-15 |  | ||||
DO-201 |  | ||||
P600 |  |
SMFJ Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μ A) | Maximum Peak Pulse Current I pp (A) | Maximum Clamping Voltage VC@ I pp(V) | |
Min .V | Max .V | |||||||
SMF5.0CA | SMF5.0A | 5.0 | 6.4 | 7 | 10 | 400 | 21.7 | 9.2 |
SMF6.0CA | SMF6.0A | 6.0 | 6.67 | 7.37 | 10 | 400 | 19.4 | 10.3 |
SMF 6.5CA | SMF 6.5A | 6.5 | 7.22 | 7.98 | 10 | 250 | 17.9 | 11.2 |
SMF7.0 CA | SMF7.0 A | 7.0 | 7.78 | 8.6 | 10 | 100 | 16.7 | 12 |
SMF 7.5CA | SMF 7.5A | 7.5 | 8.33 | 9.21 | 1.0 | 50 | 15.5 | 12.9 |
SMF 8.0CA | SMF 8.0A | 8.0 | 8.89 | 9.83 | 1.0 | 25 | 14.7 | 13.6 |
SMF8.5 CA | SMF8.5 A | 8.5 | 9.44 | 10.4 | 1.0 | 10 | 13.9 | 14.4 |
SMF9.0 CA | SMF9.0 A | 9 | 10 | 11.1 | 1.0 | 5 | 13 | 15.4 |
SMF 10CA | SMF 10A | 10 | 11.1 | 12.3 | 1.0 | 2.5 | 11.8 | 17 |
SMF 11CA | SMF11A | 11 | 12.2 | 13.5 | 1.0 | 2.5 | 11 | 18.2 |
SMF 12CA | SMF 12A | 12 | 13.3 | 14.7 | 1.0 | 2.5 | 10.1 | 19.9 |
SMF 13CA | SMF13A | 13 | 14.4 | 15.9 | 1.0 | 1.0 | 9.3 | 21.5 |
SMF 14CA | SMF 14A | 14 | 15.6 | 17.2 | 1.0 | 1.0 | 8.6 | 23.2 |
SMF 15CA | SMF15A | 15 | 16.7 | 18.5 | 1.0 | 1.0 | 8.2 | 24.4 |
SMF16CA | SMF16A | 16 | 17.8 | 19.7 | 1.0 | 1.0 | 7.7 | 26 |
SMF 17CA | SMF17A | 17 | 18.9 | 20.9 | 1.0 | 1.0 | 7.2 | 27.6 |
SMF 18CA | SMF18A | 18 | 20 | 22.1 | 1.0 | 1.0 | 6.8 | 29.2 |
SMF20CA | SMF20A | 20 | 22.2 | 24.5 | 1.0 | 1.0 | 6.2 | 32.4 |
SMF22CA | SMF22A | 22 | 24.4 | 26.9 | 1.0 | 1.0 | 5.6 | 35.5 |
SMF24CA | SMF24A | 24 | 26.7 | 29.5 | 1.0 | 1.0 | 5.1 | 38.9 |
SMF26CA | SMF26A | 26 | 28.9 | 31.9 | 1.0 | 1.0 | 4.8 | 42.1 |
SMF28CA | SMF28A | 28 | 31.1 | 34.4 | 1.0 | 1.0 | 4.4 | 45.4 |
SMF30CA | SMF30A | 30 | 33.3 | 36.8 | 1.0 | 1.0 | 4.1 | 48.4 |
SMF33CA | SMF33A | 33 | 36.7 | 40.6 | 1.0 | 1.0 | 3.8 | 53.3 |
SMF36CA | SMF36A | 36 | 40 | 44.2 | 1.0 | 1.0 | 3.4 | 58.1 |
SMF40CA | SMF40A | 40 | 44.4 | 49.1 | 1.0 | 1.0 | 3.1 | 64.5 |
SMF43CA | SMF43A | 43 | 47.8 | 52.8 | 1.0 | 1.0 | 2.9 | 69.4 |
SMF45CA | SMF45A | 45 | 50 | 55.3 | 1.0 | 1.0 | 2.8 | 72.7 |
SMF48CA | SMF48A | 48 | 53.3 | 58.9 | 1.0 | 1.0 | 2.6 | 77.4 |
SMF51CA | SMF51A | 51 | 56.7 | 62.7 | 1.0 | 1.0 | 2.4 | 82.4 |
SMF54CA | SMF54A | 54 | 60 | 66.3 | 1.0 | 1.0 | 2.3 | 87.1 |
SMF58CA | SMF58A | 58 | 64.4 | 71.2 | 1.0 | 1.0 | 2.2 | 93.6 |
SMF60CA | SMF60A | 60 | 66.7 | 73.7 | 1.0 | 1.0 | 2.1 | 96.8 |
SMF64CA | SMF64A | 64 | 71.1 | 78.6 | 1.0 | 1.0 | 2 | 103 |
SMF70CA | SMF70A | 70 | 77.8 | 86 | 1.0 | 1.0 | 1.8 | 113 |
SMF75CA | SMF75A | 75 | 83.3 | 92.1 | 1.0 | 1.0 | 1.7 | 121 |
SMF78CA | SMF78A | 78 | 86.7 | 95.8 | 1.0 | 1.0 | 1.6 | 126 |
SMFJ Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μ A) | Maximum Peak Pulse Current I pp (A) | Maximum Clamping Voltage VC@ I pp(V) | |
Min .V | Max .V | |||||||
SMF85CA | SMF85A | 85 | 94.4 | 104 | 1.0 | 1.0 | 1.5 | 137 |
SMF90CA | SMF90A | 90 | 100 | 111 | 1.0 | 1.0 | 1.4 | 146 |
SMF 100CA | SMF100A | 100 | 111 | 123 | 1.0 | 1.0 | 1.3 | 162 |
SMF 110CA | SMF 110A | 110 | 122 | 135 | 1.0 | 1.0 | 1.2 | 177 |
SMF 120CA | SMF120A | 120 | 133 | 147 | 1.0 | 1.0 | 1 | 193 |
SMF 130CA | SMF 130A | 130 | 144 | 159 | 1.0 | 1.0 | 1 | 209 |
SMF 150CA | SMF150A | 150 | 167 | 185 | 1.0 | 1.0 | 0.8 | 243 |
SMF 160CA | SMF 160A | 160 | 178 | 197 | 1.0 | 1.0 | 0.8 | 259 |
SMF 170CA | SMF170A | 170 | 189 | 209 | 1.0 | 1.0 | 0.7 | 275 |
SMAJ Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | MARKING | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μA) | Maximum Peak Pulse Current I pp (A) | Maximum Clamping Voltage VC@ I pp(V) | ||
BI | UNI | Min .V | Max .V | |||||||
SMAJ5.0CA | SMAJ5.0A | WE | AE | 5.0 | 6.4 | 7.25 | 10 | 800 | 43.5 | 9.2 |
SMAJ6.0CA | SMAJ6.0A | WG | AG | 6.0 | 6.67 | 7.67 | 10 | 800 | 38.8 | 10.3 |
SMAJ 6.5CA | SMAJ 6.5A | WK | AK | 6.5 | 7.22 | 8.30 | 10 | 500 | 35.7 | 11.2 |
SMAJ7.0CA | SMAJ7.0 A | WM | AM | 7.0 | 7.78 | 8.95 | 10 | 200 | 33.3 | 12.0 |
SMAJ 7.5CA | SMAJ 7.5A | WP | AP | 7.5 | 8.33 | 9.58 | 1 | 100 | 31.0 | 12.9 |
SMAJ 8.0CA | SMAJ 8.0A | WR | AR | 8.0 | 8.89 | 10.23 | 1 | 50 | 29.4 | 13.6 |
SMAJ8.5CA | SMAJ8.5 A | WT | AT | 8.5 | 9.44 | 10.82 | 1 | 20 | 27.7 | 14.4 |
SMAJ9.0CA | SMAJ9.0 A | WV | AV | 9.0 | 10.0 | 11.1 | 1 | 5.0 | 26.0 | 15.4 |
SMAJ10CA | SMAJ10 A | WX | AX | 10.0 | 11.10 | 12.80 | 1 | 5 | 23.5 | 17.0 |
SMAJ11CA | SMAJ11 A | WZ | AZ | 11.0 | 12.2 | 13.5 | 1 | 5 | 22.0 | 18.2 |
SMAJ12CA | SMAJ12 A | XE | BE | 12.0 | 13.3 | 16.3 | 1 | 5 | 18.2 | 22.0 |
SMAJ13CA | SMAJ13A | XG | BG | 13.0 | 14.40 | 16.50 | 1 | 5 | 18.6 | 21.5 |
SMAJ14CA | SMAJ14A | XK | BK | 14.0 | 15.6 | 17.2 | 1 | 5 | 17.2 | 23.2 |
SMAJ15CA | SMAJ15A | XM | BM | 15.0 | 16.70 | 19.20 | 1 | 5 | 16.4 | 24.4 |
SMAJ16CA | SMAJ16A | XP | BP | 16.0 | 17.8 | 19.7 | 1 | 5 | 15.4 | 26.0 |
SMAJ17CA | SMAJ17A | XR | BR | 17.0 | 18.90 | 21.70 | 1 | 5 | 14.5 | 27.6 |
SMAJ18CA | SMAJ18A | XT | BT | 18.0 | 20.00 | 23.30 | 1 | 5 | 13.7 | 29.2 |
SMAJ20CA | SMAJ20A | XV | BV | 20.0 | 22.20 | 25.50 | 1 | 5 | 12.3 | 32.4 |
SMAJ22CA | SMAJ22A | XX | BX | 22.0 | 24.4 | 26.9 | 1 | 5 | 11.3 | 35.5 |
SMAJ24CA | SMAJ24A | XZ | BZ | 24.0 | 26.70 | 30.70 | 1 | 5 | 10.3 | 38.9 |
SMAJ26CA | SMAJ26A | YE | CE | 26.0 | 28.90 | 33.20 | 1 | 5 | 9.5 | 42.1 |
SMAJ28CA | SMAJ28A | YG | CG | 28.0 | 31.10 | 35.80 | 1 | 5 | 8.8 | 45.4 |
SMAJ30CA | SMAJ30A | YK | CK | 30.0 | 33.30 | 38.30 | 1 | 5 | 8.3 | 48.4 |
SMAJ33CA | SMAJ33A | YM | CM | 33.0 | 36.70 | 42.20 | 1 | 5 | 7.5 | 53.3 |
SMAJ36CA | SMAJ36A | YP | CP | 36.0 | 40.00 | 46.00 | 1 | 5 | 6.9 | 58.1 |
SMAJ40CA | SMAJ40A | YR | CR | 40.0 | 44.40 | 51.10 | 1 | 5 | 6.2 | 64.5 |
SMAJ43CA | SMAJ43A | YT | CT | 43.0 | 47.80 | 54.90 | 1 | 5 | 5.7 | 69.4 |
SMAJ45CA | SMAJ45A | YV | CV | 45.0 | 50.00 | 57.50 | 1 | 5 | 5.5 | 72.7 |
SMAJ48CA | SMAJ48A | YX | CX | 48.0 | 53.30 | 61.30 | 1 | 5 | 5.2 | 77.4 |
SMAJ51CA | SMAJ51A | YZ | CZ | 51.0 | 56.70 | 65.20 | 1 | 5 | 4.9 | 82.4 |
SMAJ54CA | SMAJ54A | ZE | RE | 54.0 | 60.00 | 69.00 | 1 | 5 | 4.6 | 87.1 |
SMAJ58CA | SMAJ58A | ZG | RG | 58.0 | 64.4 | 71.2 | 1 | 5 | 4.3 | 93.6 |
SMAJ60CA | SMAJ60A | ZK | RK | 60.0 | 66.70 | 76.70 | 1 | 5 | 4.1 | 96.8 |
SMAJ64CA | SMAJ64A | ZM | RM | 64.0 | 71.1 | 78.6 | 1 | 5 | 3.9 | 103 |
SMAJ70CA | SMAJ70A | ZP | RP | 70.0 | 77.80 | 89.50 | 1 | 5 | 3.5 | 113.0 |
SMAJ75CA | SMAJ75A | ZR | RR | 75.0 | 83.30 | 95.80 | 1 | 5 | 3.3 | 121.0 |
SMAJ78CA | SMAJ78A | ZT | RT | 78.0 | 86.70 | 99.70 | 1 | 5 | 3.2 | 126.0 |
SMAJ Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | MARKING | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μA) | Maximum Peak Pulse Current Ipp(A) | Maximum Clamping Voltage VC@ I pp(V) | ||
BI | UNI | Min .V | Max .V | |||||||
SMAJ85CA | SMAJ85A | ZV | RV | 85.0 | 94.4 | 115.0 | 1 | 5 | 2.6 | 151.0 |
SMAJ90CA | SMAJ90A | ZX | RX | 90.0 | 100.0 | 115.50 | 1 | 5 | 2.7 | 146.0 |
SMAJ100CA | SMAJ100A | ZZ | RZ | 100.0 | 110.0 | 128.00 | 1 | 5 | 2.5 | 162.0 |
SMAJ110CA | SMAJ110A | VE | SE | 110.0 | 122.0 | 140.50 | 1 | 5 | 2.3 | 177.0 |
SMAJ120CA | SMAJ120A | VG | SG | 120.0 | 133.0 | 147.0 | 1 | 5 | 2.0 | 193.0 |
SMAJ130CA | SMAJ130A | VK | SK | 130.0 | 144.0 | 165.50 | 1 | 5 | 1.9 | 209.0 |
SMAJ150CA | SMAJ150A | VM | SM | 150.0 | 167.0 | 192.50 | 1 | 5 | 1.6 | 243.0 |
SMAJ160CA | SMAJ160A | VP | SP | 160.0 | 178.0 | 197.0 | 1 | 5 | 1.5 | 259.0 |
SMAJ170CA | SMAJ170A | VR | SR | 170.0 | 189.0 | 217.50 | 1 | 5 | 1.4 | 275.0 |
SMAJ 180CA | SMAJ 180A | VT | ST | 180.0 | 209.0 | 255.0 | 1 | 5 | 1.2 | 328.0 |
SMBJ Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | MARKING | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μA) | Maximum Peak Pulse Current Ipp(A) | Maximum Clamping Voltage VC@ I pp(V) | ||
BI | UNI | Min .V | Max .V | |||||||
SMBJ5.0CA | SMBJ5.0A | AE | KE | 5.0 | 6.4 | 7.25 | 10 | 800 | 65.2 | 9.2 |
SMBJ6.0CA | SMBJ6.0A | AG | KG | 6.0 | 6.67 | 7.67 | 10 | 800 | 58.3 | 10.3 |
SMBJ 6.5CA | SMBJ 6.5A | AK | KK | 6.5 | 7.22 | 8.30 | 10 | 500 | 53.6 | 11.2 |
SMBJ7.0CA | SMBJ7.0 A | AM | KM | 7.0 | 7.78 | 8.95 | 10 | 200 | 50.0 | 12.0 |
SMBJ 7.5CA | SMBJ 7.5A | AP | KP | 7.5 | 8.33 | 9.58 | 1 | 100 | 46.6 | 12.9 |
SMBJ 8.0CA | SMBJ 8.0A | AR | KR | 8.0 | 8.89 | 10.23 | 1 | 50 | 44.1 | 13.6 |
SMBJ8.5CA | SMBJ8.5 A | AT | KT | 8.5 | 9.44 | 10.82 | 1 | 20 | 41.7 | 14.4 |
SMBJ9.0CA | SMBJ9.0 A | AV | KV | 9.0 | 10.00 | 11.50 | 1 | 10 | 39.0 | 15.4 |
SMBJ10CA | SMBJ10A | AX | KX | 10.0 | 11.1 | 12.3 | 1 | 10 | 35.3 | 17.0 |
SMBJ11CA | SMBJ11A | AZ | KZ | 11.0 | 12.20 | 14.00 | 1 | 5 | 33.0 | 18.2 |
SMBJ12CA | SMBJ12A | BE | LE | 12.0 | 13.3 | 14.7 | 1 | 5 | 30.2 | 19.9 |
SMBJ13CA | SMBJ13A | BG | LG | 13.0 | 14.40 | 16.50 | 1 | 5 | 27.9 | 21.5 |
SMBJ14CA | SMBJ14A | BK | LK | 14.0 | 15.60 | 17.2 | 1 | 5 | 25.9 | 23.2 |
SMBJ15CA | SMBJ15A | BM | LM | 15.0 | 16.70 | 19.20 | 1 | 5 | 24.6 | 24.4 |
SMBJ16CA | SMBJ16A | BP | LP | 16.0 | 17.8 | 19.7 | 1 | 5 | 23.1 | 26.0 |
SMBJ17CA | SMBJ17A | BR | LR | 17.0 | 18.90 | 21.70 | 1 | 5 | 21.7 | 27.6 |
SMBJ18CA | SMBJ18A | BT | LT | 18.0 | 20.00 | 23.30 | 1 | 5 | 20.5 | 29.2 |
SMBJ20CA | SMBJ20A | BV | LV | 20.0 | 22.20 | 25.50 | 1 | 5 | 18.5 | 32.4 |
SMBJ22CA | SMBJ22A | BX | LX | 22.0 | 24.40 | 28.00 | 1 | 5 | 16.9 | 35.5 |
SMBJ24CA | SMBJ24A | BZ | LZ | 24.0 | 26.70 | 30.70 | 1 | 5 | 15.2 | 38.9 |
SMBJ26CA | SMBJ26A | CE | ME | 26.0 | 28.90 | 33.20 | 1 | 5 | 14.2 | 42.1 |
SMBJ28CA | SMBJ28A | CG | MG | 28.0 | 31.10 | 35.80 | 1 | 5 | 13.2 | 45.4 |
SMBJ30CA | SMBJ30A | CK | MK | 30.0 | 33.30 | 38.30 | 1 | 5 | 12.4 | 48.4 |
SMBJ33CA | SMBJ33A | CM | MM | 33.0 | 36.70 | 42.20 | 1 | 5 | 11.3 | 53.3 |
SMBJ36CA | SMBJ36A | CP | MP | 36.0 | 40.00 | 46.00 | 1 | 5 | 10.3 | 58.1 |
SMBJ40CA | SMBJ40A | CR | MR | 40.0 | 44.40 | 51.10 | 1 | 5 | 9.3 | 64.5 |
SMBJ43CA | SMBJ43A | CT | MT | 43.0 | 47.80 | 52.80 | 1 | 5 | 8.6 | 69.4 |
SMBJ45CA | SMBJ45A | CV | MV | 45.0 | 50.00 | 57.50 | 1 | 5 | 8.3 | 72.7 |
SMBJ48CA | SMBJ48A | CX | MX | 48.0 | 53.3 | 58.9 | 1 | 5 | 7.8 | 77.4 |
SMBJ51CA | SMBJ51A | CZ | MZ | 51.0 | 56.70 | 65.20 | 1 | 5 | 7.3 | 82.4 |
SMBJ54CA | SMBJ54A | DE | NE | 54.0 | 60.0 | 66.3 | 1 | 5 | 6.9 | 87.1 |
SMBJ58CA | SMBJ58A | DG | NG | 58.0 | 64.40 | 74.10 | 1 | 5 | 6.4 | 93.6 |
SMBJ60CA | SMBJ60A | DK | NK | 60.0 | 66.7 | 73.7 | 1 | 5 | 6.2 | 96.8 |
SMBJ64CA | SMBJ64A | DM | NM | 64.0 | 71.10 | 81.80 | 1 | 5 | 5.8 | 103.0 |
SMBJ70CA | SMBJ70A | DP | NP | 70.0 | 77.80 | 89.50 | 1 | 5 | 5.3 | 113.0 |
SMBJ75CA | SMBJ75A | DR | NR | 75.0 | 83.3 | 92.1 | 1 | 5 | 5.0 | 121.0 |
SMBJ Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | MARKING | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μA) | Maximum Peak Pulse Current Ipp(A) | Maximum Clamping Voltage VC@ I pp(V) | ||
BI | UNI | Min .V | Max .V | |||||||
SMBJ78CA | SMBJ78A | DT | NT | 78.0 | 86.70 | 99.70 | 1 | 5 | 4.7 | 126.0 |
SMBJ85CA | SMBJ85A | DV | NV | 85.0 | 94.40 | 108.20 | 1 | 5 | 4.4 | 137.0 |
SMBJ90CA | SMBJ90A | DX | NX | 90.0 | 100.0 | 111.0 | 1 | 5 | 4.1 | 146.0 |
SMBJ100CA | SMBJ100A | DZ | NZ | 100.0 | 110.00 | 128.00 | 1 | 5 | 3.7 | 162.0 |
SMBJ110CA | SMBJ110A | EE | PE | 110.0 | 122.00 | 140.50 | 1 | 5 | 3.4 | 177.0 |
SMBJ120CA | SMBJ120A | EG | PG | 120.0 | 133.00 | 147.00 | 1 | 5 | 3.1 | 193.0 |
SMBJ130CA | SMBJ130A | EK | PK | 130.0 | 144.00 | 165.50 | 1 | 5 | 2.9 | 209.0 |
SMBJ150CA | SMBJ150A | EM | PM | 150.0 | 167.00 | 192.50 | 1 | 5 | 2.5 | 243.0 |
SMBJ160CA | SMBJ160A | EP | PP | 160.0 | 178.00 | 197.00 | 1 | 5 | 2.3 | 259.0 |
SMBJ170CA | SMBJ170A | ER | PR | 170.0 | 189.00 | 217.50 | 1 | 5 | 2.2 | 275.0 |
SMBJ180CA | SMBJ180A | ET | PT | 180.0 | 201.00 | 222.00 | 1 | 5 | 2.1 | 292.0 |
SMBJ200CA | SMBJ200A | EV | PV | 200.0 | 224.00 | 247.00 | 1 | 5 | 1.8 | 324.0 |
SMBJ220CA | SMBJ220A | EX | PX | 220.0 | 246.00 | 272.00 | 1 | 5 | 1.7 | 356.0 |
SMBJ350CA | SMBJ350A | FG | QG | 350 | 391 | 432 | 1 | 1 | 1.1 | 567 |
P6SMBJ Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | MARKING | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μA) | Maximum Peak Pulse Current Ipp(A) | Maximum Clamping Voltage VC@ I pp(V) | ||
BI | UNI | Min .V | Max .V | |||||||
P6SMB6.8CA | P6SMB6.8A | 6V8C | 6V8A | 5.8 | 6.45 | 7.14 | 10 | 800 | 58.1 | 10.5 |
P6SMB7.5CA | P6SMB7.5A | 7V5C | 7V5A | 6.4 | 7.13 | 7.88 | 10 | 500 | 54.0 | 11.3 |
P6SMB 8.2CA | P6SMB8.2A | 8V2C | 8V2A | 7.02 | 7.79 | 8.61 | 10 | 200 | 50.4 | 12.1 |
P6SMB 9.1CA | P6SMB9.1A | 9V1C | 9V1A | 7.78 | 8.65 | 9.55 | 10 | 50 | 45.5 | 13.4 |
P6SMB10CA | P6SMB10A | 10C | 10A | 8.55 | 9.50 | 10.50 | 10 | 10 | 42.1 | 14.5 |
P6SMB11CA | P6SMB11A | 11C | 11A | 9.40 | 10.50 | 11.60 | 1 | 5 | 39.1 | 15.6 |
P6SMB12CA | P6SMB12A | 12C | 12A | 10.20 | 11.40 | 12.60 | 1 | 5 | 36.5 | 16.70 |
P6SMB13CA | P6SMB13 A | 13C | 13A | 11.10 | 12.40 | 13.70 | 1 | 1 | 33.5 | 18.2 |
P6SMB15CA | P6SMB15A | 15C | 15A | 12.80 | 14.30 | 15.80 | 1 | 1 | 28.8 | 21.2 |
P6SMB16CA | P6SMB16A | 16C | 16A | 13.60 | 15.20 | 16.80 | 1 | 1 | 27.1 | 22.50 |
P6SMB18CA | P6SMB18A | 18C | 18A | 15.30 | 17.10 | 18.90 | 1 | 1 | 24.2 | 25.5 |
P6SMB20CA | P6SMB20A | 20C | 20A | 17.10 | 19.00 | 21.00 | 1 | 1 | 22.0 | 27.7 |
P6SMB22CA | P6SMB22A | 22C | 22A | 18.80 | 20.90 | 23.10 | 1 | 1 | 19.9 | 30.60 |
P6SMB24CA | P6SMB24A | 24C | 24A | 20.50 | 22.80 | 25.20 | 1 | 1 | 18.4 | 33.2 |
P6SMB27CA | P6SMB27A | 27C | 27A | 23.10 | 25.70 | 28.40 | 1 | 1 | 16.3 | 37.5 |
P6SMB30CA | P6SMB30A | 30C | 30A | 28.50 | 28.50 | 31.50 | 1 | 1 | 14.7 | 41.4 |
P6SMB33CA | P6SMB33A | 33C | 33A | 28.20 | 31.40 | 34.70 | 1 | 1 | 13.3 | 45.70 |
P6SMB36CA | P6SMB36A | 36C | 36A | 31.40 | 34.20 | 37.80 | 1 | 1 | 12.2 | 49.90 |
P6SMB39CA | P6SMB39A | 39C | 39A | 33.30 | 37.10 | 41.00 | 1 | 1 | 11.3 | 53.9 |
P6SMB43CA | P6SMB43A | 43C | 43A | 36.80 | 40.90 | 45.20 | 1 | 1 | 10.3 | 59.30 |
P6SMB47CA | P6SMB47A | 47C | 47A | 40.20 | 44.70 | 49.40 | 1 | 1 | 9.4 | 64.8 |
P6SMB51CA | P6SMB51A | 51C | 51A | 43.60 | 48.50 | 53.60 | 1 | 1 | 8.7 | 70.1 |
P6SMB56CA | P6SMB56A | 56C | 56A | 47.80 | 53.20 | 58.80 | 1 | 1 | 7.9 | 77.7 |
P6SMB62CA | P6SMB62A | 62C | 62A | 53.00 | 58.9 | 65.10 | 1 | 1 | 7.2 | 85.0 |
P6SMB68CA | P6SMB68A | 68C | 68A | 58.10 | 64.60 | 71.40 | 1 | 1 | 6.6 | 92.0 |
P6SMB75CA | P6SMB75A | 75C | 75A | 64.10 | 71.3 | 78.00 | 1 | 1 | 5.9 | 103.0 |
P6SMB82CA | P6SMB82A | 82C | 82A | 70.10 | 77.9 | 86.00 | 1 | 1 | 5.4 | 113.0 |
P6SMB91CA | P6SMB91A | 91C | 91A | 77.80 | 86.5 | 95.5 | 1 | 1 | 4.9 | 125.0 |
P6SMB100CA | P6SMB100A | 100C | 100A | 85.50 | 95.0 | 105.0 | 1 | 1 | 4.5 | 137.0 |
P6SMB110CA | P6SMB110A | 110C | 110A | 94.00 | 105.0 | 116.0 | 1 | 1 | 4.0 | 152.0 |
P6SMB120CA | P6SMB120A | 120C | 120A | 102.0 | 114.0 | 126.0 | 1 | 1 | 3.7 | 165.0 |
P6SMB130CA | P6SMB130A | 130C | 130A | 111.0 | 124.0 | 137.0 | 1 | 1 | 3.4 | 179.0 |
P6SMB150CA | P6SMB150A | 150C | 150A | 128.0 | 143.0 | 158.0 | 1 | 1 | 2.9 | 207.0 |
P6SMBJ Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | MARKING | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μA) | Maximum Peak Pulse Current Ipp(A) | Maximum Clamping Voltage VC@ I pp(V) | ||
BI | UNI | Min .V | Max .V | |||||||
P6SMB160CA | P6SMB160A | 160C | 160A | 136.0 | 152.0 | 168.0 | 1 | 1 | 2.8 | 219.0 |
P6SMB170CA | P6SMB170A | 170C | 170A | 145.0 | 162.0 | 179.0 | 1 | 1 | 2.6 | 234.0 |
P6SMB180CA | P6SMB180A | 180C | 180A | 154.0 | 171.0 | 189.00 | 1 | 1 | 2.5 | 246.0 |
P6SMB200CA | P6SMB200A | 200C | 200A | 171.0 | 190.0 | 210.0 | 1 | 1 | 2.2 | 274.0 |
P6KE Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μ A) | Maximum Peak Pulse Current I pp (A) | Maximum Clamping Voltage VC@ I pp(V) | |
Min .V | Max .V | |||||||
P6KE6.8CA | P6KE6.8A | 5.80 | 6.45 | 7.14 | 10 | 1000 | 57.3 | 10.5 |
P6KE7.5CA | P6KE7.5A | 6.40 | 7.13 | 7.88 | 10 | 500 | 53.0 | 11.3 |
P6KE8.2CA | P6KE8.2A | 7.02 | 7.79 | 8.61 | 10 | 200 | 50.0 | 12.1 |
P6KE9.1CA | P6KE9.1A | 7.78 | 8.65 | 9.50 | 1 | 50 | 45.0 | 13.4 |
P6KE10CA | P6KE10A | 8.55 | 9.50 | 10.50 | 1 | 10 | 41.0 | 14.5 |
P6KE11CA | P6KE11A | 9.40 | 10.50 | 11.60 | 1 | 5 | 38.0 | 15.6 |
P6KE12CA | P6KE12A | 10.20 | 11.40 | 12.60 | 1 | 5 | 36.0 | 16.7 |
P6KE13CA | P6KE13A | 11.10 | 12.40 | 13.70 | 1 | 5 | 33.0 | 18.2 |
P6KE15CA | P6KE15A | 12.80 | 14.30 | 15.80 | 1 | 5 | 28.0 | 21.2 |
P6KE16CA | P6KE16A | 13.60 | 15.20 | 16.80 | 1 | 5 | 27.0 | 22.5 |
P6KE18CA | P6KE18A | 15.30 | 17.10 | 18.90 | 1 | 5 | 24.0 | 25.2 |
P6KE20CA | P6KE20A | 17.10 | 19.00 | 21.00 | 1 | 5 | 22.0 | 27.7 |
P6KE22CA | P6KE22A | 18.80 | 20.90 | 23.10 | 1 | 5 | 20.0 | 30.6 |
P6KE24CA | P6KE24A | 20.50 | 22.80 | 25.20 | 1 | 5 | 18.0 | 33.2 |
P6KE27CA | P6KE27A | 23.10 | 25.70 | 28.40 | 1 | 5 | 16.0 | 37.5 |
P6KE30CA | P6KE30A | 25.60 | 28.50 | 31.50 | 1 | 5 | 14.4 | 41.4 |
P6KE33CA | P6KE33A | 28.20 | 31.40 | 34.70 | 1 | 5 | 13.2 | 45.7 |
P6KE36CA | P6KE36A | 30.80 | 34.20 | 37.80 | 1 | 5 | 12.0 | 49.9 |
P6KE39CA | P6KE39A | 33.30 | 37.10 | 41.00 | 1 | 5 | 11.2 | 53.9 |
P6KE43CA | P6KE43A | 36.80 | 40.90 | 45.20 | 1 | 5 | 10.1 | 59.3 |
P6KE47CA | P6KE47A | 40.20 | 44.70 | 49.40 | 1 | 5 | 9.3 | 64.8 |
P6KE51CA | P6KE51A | 43.60 | 48.5 | 53.60 | 1 | 5 | 8.6 | 70.1 |
P6KE56CA | P6KE56A | 47.80 | 53.20 | 58.80 | 1 | 5 | 7.8 | 77.0 |
P6KE62CA | P6KE62A | 53.00 | 58.90 | 65.10 | 1 | 5 | 7.1 | 85.0 |
P6KE68CA | P6KE68A | 58.10 | 64.60 | 71.40 | 1 | 5 | 6.5 | 92.0 |
P6KE75CA | P6KE75A | 64.10 | 71.30 | 78.80 | 1 | 5 | 5.8 | 103.0 |
P6KE82CA | P6KE82A | 70.10 | 77.90 | 86.10 | 1 | 5 | 5.3 | 113.0 |
P6KE91CA | P6KE91A | 77.80 | 86.50 | 95.50 | 1 | 5 | 4.8 | 125.0 |
P6KE110CA | P6KE110A | 94.00 | 105.00 | 116.00 | 1 | 5 | 4.0 | 152.0 |
P6KE130CA | P6KE130A | 111.00 | 124.00 | 137.00 | 1 | 5 | 3.3 | 179.0 |
P6KE150CA | P6KE150A | 128.00 | 143.00 | 158.00 | 1 | 5 | 2.9 | 207.0 |
P6KE160CA | P6KE160A | 136.00 | 152.00 | 168.00 | 1 | 5 | 2.7 | 219.0 |
P6KE170CA | P6KE170A | 145.00 | 162.00 | 179.00 | 1 | 5 | 2.6 | 234.0 |
P6KE180CA | P6KE180A | 154.00 | 171.00 | 189.00 | 1 | 5 | 2.4 | 246.0 |
P6KE200CA | P6KE200A | 171.00 | 190.00 | 210.00 | 1 | 5 | 2.2 | 274.0 |
P6KE250CA | P6KE250A | 214.00 | 237.00 | 263.00 | 1 | 5 | 1.8 | 344.0 |
P6KE Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μ A) | Maximum Peak Pulse Current I pp (A) | Maximum Clamping Voltage VC@ I pp(V) | |
Min .V | Max .V | |||||||
P6KE300CA | P6KE300A | 256.00 | 285.00 | 315.00 | 1 | 5 | 1.5 | 414.0 |
P6KE350CA | P6KE350A | 300.00 | 332.00 | 368.00 | 1 | 5 | 1.3 | 482.0 |
P6KE400CA | P6KE400A | 342.00 | 380.00 | 420.00 | 1 | 5 | 1.1 | 548.0 |
P6KE440CA | P6KE440A | 376.00 | 418.00 | 462.00 | 1 | 5 | 1.04 | 600.0 |
P6KE480CA | P6KE480A | 408.00 | 456.00 | 504.00 | 1 | 5 | 0.9 | 658.0 |
P6KE530CA | P6KE530A | 450.00 | 503.00 | 556.00 | 1 | 5 | 0.8 | 725.0 |
SA Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μ A) | Maximum Peak Pulse Current I pp (A) | Maximum Clamping Voltage VC@ I pp(V) | |
Min .V | Max .V | |||||||
SA5.0CA | SA5.0A | 5.0 | 6.40 | 7.25 | 10 | 600 | 54.3 | 9.2 |
SA6.0CA | SA6.0A | 6.0 | 6.67 | 7.67 | 10 | 600 | 48.5 | 10.3 |
SA6.5CA | SA6.5A | 6.5 | 7.22 | 8.30 | 10 | 400 | 44.7 | 12.0 |
SA7.0CA | SA7.0A | 7.0 | 7.78 | 8.95 | 10 | 150 | 41.7 | 150 |
SA7.5CA | SA7.5A | 7.5 | 8.33 | 9.58 | 1 | 50 | 38.8 | 12.9 |
SA8.0CA | SA8.0A | 8.0 | 8.89 | 10.23 | 1 | 25 | 36.7 | 13.6 |
SA8.5CA | SA8.5A | 8.5 | 9.44 | 10.82 | 1 | 10 | 34.7 | 14.4 |
SA9.0CA | SA9.0A | 9.0 | 10.00 | 11.50 | 1 | 5 | 32.5 | 15.4 |
SA10CA | SA 10A | 10 | 11.10 | 12.80 | 1 | 3 | 29.4 | 17.0 |
SA11CA | SA11A | 11 | 11.00 | 12.20 | 1 | 3 | 27.4 | 18.2 |
SA12CA | SA12A | 12 | 13.30 | 15.30 | 1 | 3 | 25.1 | 19.9 |
SA13CA | SA13A | 13 | 14.40 | 16.50 | 1 | 3 | 23.2 | 21.5 |
SA14CA | SA14A | 14 | 15.60 | 17.90 | 1 | 3 | 21.5 | 23.2 |
SA15CA | SA 15A | 15 | 16.70 | 19.20 | 1 | 3 | 20.6 | 24.4 |
SA16CA | SA 16A | 16 | 17.80 | 20.50 | 1 | 3 | 19.2 | 26.0 |
SA17CA | SA 17A | 17 | 18.90 | 21.70 | 1 | 3 | 16.1 | 27.6 |
SA18CA | SA 18A | 18 | 20.00 | 23.30 | 1 | 3 | 17.2 | 29．2 |
SA20CA | SA20A | 20 | 22.20 | 25.50 | 1 | 3 | 15.4 | 32.4 |
SA22CA | SA22A | 22 | 24.40 | 28.00 | 1 | 3 | 14.1 | 35.5 |
SA24CA | SA24A | 24 | 26.70 | 30.70 | 1 | 3 | 12.8 | 38.9 |
SA26CA | SA26A | 26 | 28.90 | 33.20 | 1 | 3 | 11.9 | 42.1 |
SA28CA | SA28A | 28 | 31.10 | 35.80 | 1 | 3 | 11.0 | 45.4 |
SA30CA | SA30A | 30 | 33.30 | 38.30 | 1 | 3 | 10.3 | 48.4 |
SA33CA | SA33A | 33 | 36.70 | 42.20 | 1 | 3 | 9.4 | 53.3 |
SA36CA | SA36A | 36 | 40.00 | 46.00 | 1 | 3 | 8.6 | 58.1 |
SA40CA | SA40A | 40 | 44.40 | 51.10 | 1 | 3 | 7.8 | 64.5 |
SA43CA | SA43A | 43 | 47.80 | 54.90 | 1 | 3 | 7.2 | 69.4 |
SA45CA | SA45A | 45 | 50.00 | 57.50 | 1 | 3 | 6.9 | 72.7 |
SA48CA | SA48A | 48 | 53.30 | 61.30 | 1 | 3 | 6.5 | 77.4 |
SA51CA | SA51A | 51 | 56.70 | 65.20 | 1 | 3 | 6.1 | 82.4 |
SA58CA | SA58A | 58 | 64.40 | 74.10 | 1 | 3 | 5.3 | 93.6 |
SA60CA | SA60A | 60 | 66.70 | 76.70 | 1 | 3 | 5.2 | 96.8 |
SA64CA | SA64A | 64 | 71.10 | 81.80 | 1 | 3 | 4.9 | 103.0 |
SA70CA | SA70A | 70 | 77.80 | 89.50 | 1 | 3 | 4.4 | 113.0 |
SA75CA | SA75A | 75 | 83.30 | 95.80 | 1 | 3 | 4.1 | 121.0 |
SA78CA | SA78A | 78 | 86.70 | 99.70 | 1 | 3 | 4.0 | 126.0 |
SA85CA | SA85A | 85 | 94.40 | 108.20 | 1 | 3 | 3.6 | 137.0 |
SA Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μ A) | Maximum Peak Pulse Current I pp (A) | Maximum Clamping Voltage VC@ I pp(V) | |
Min .V | Max .V | |||||||
SA090CA | SA90A | 90 | 100.00 | 115.50 | 1 | 3 | 3.4 | 146.0 |
SA100CA | SA 100A | 100 | 111.00 | 128.00 | 1 | 3 | 3.1 | 162.0 |
SA110CA | SA 110A | 110 | 122.00 | 140.50 | 1 | 3 | 2.8 | 177.0 |
SA120CA | SA 120A | 120 | 133.00 | 153.00 | 1 | 3 | 2.4 | 193.0 |
SA130CA | SA 130A | 130 | 144.00 | 165.50 | 1 | 3 | 2.1 | 209.0 |
SA150CA | SA 150A | 150 | 167.00 | 192.50 | 1 | 3 | 2.0 | 243.0 |
SA160CA | SA 160A | 160 | 178.00 | 205.00 | 1 | 3 | 1.9 | 259.0 |
SA170CA | SA 170A | 170 | 189.00 | 217.50 | 1 | 3 | 1.8 | 275.0 |
SA180CA | SA 180A | 180 | 198.00 | 230.40 | 1 | 3 | 1.7 | 292.0 |
SA190CA | SA 190A | 190 | 209.00 | 243.20 | 1 | 3 | 1.6 | 308.0 |
SMCJ Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | MARKING | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μA) | Maximum Peak Pulse Current Ipp(A) | Maximum Clamping Voltage VC@ I pp(V) | ||
BI | UNI | Min .V | Max .V | |||||||
SMCJ5.0CA | SMCJ5.0A | BDE | GDE | 5.0 | 6.4 | 7.25 | 10 | 800 | 163.0 | 9.2 |
SMCJ6.0CA | SMCJ6.0A | BDG | GDG | 6.0 | 6.67 | 7.67 | 10 | 800 | 145.6 | 10.3 |
SMCJ 6.5CA | SMCJ 6.5A | BDK | GDK | 6.5 | 7.22 | 8.30 | 10 | 500 | 133.9 | 11.2 |
SMCJ7.0 CA | SMCJ7.0 A | BDM | GDM | 7.0 | 7.78 | 8.95 | 10 | 200 | 125.0 | 12.0 |
SMCJ 7.5CA | SMCJ 7.5A | BDP | GDP | 7.5 | 8.33 | 9.58 | 1 | 100 | 116.3 | 12.9 |
SMCJ 8.0CA | SMCJ 8.0A | BDR | GDR | 8.0 | 8.89 | 10.23 | 1 | 50 | 110.3 | 13.6 |
SMCJ8.5 CA | SMCJ8.5 A | BDT | GDT | 8.5 | 9.44 | 10.82 | 1 | 20 | 104.2 | 14.4 |
SMCJ9.0 CA | SMCJ9.0 A | BDV | GDV | 9.0 | 10.00 | 11.50 | 1 | 10 | 97.4 | 15.4 |
SMCJ10CA | SMCJ10A | BDX | GDX | 10.0 | 11.1 | 12.30 | 1 | 1 | 88.2 | 17.0 |
SMCJ11CA | SMCJ11A | BDZ | GDZ | 11.0 | 12.20 | 14.00 | 1 | 5 | 82.4 | 18.2 |
SMCJ12CA | SMCJ12A | BEE | GEE | 12.0 | 13.30 | 14.70 | 1 | 5 | 75.4 | 19.9 |
SMCJ13CA | SMCJ13A | BEG | GEG | 13.0 | 14.40 | 16.50 | 1 | 5 | 69.7 | 21.5 |
SMCJ14CA | SMCJ14A | BEK | GEK | 14.0 | 15.60 | 17.20 | 1 | 5 | 64.7 | 23.2 |
SMCJ15CA | SMCJ15A | BEM | GEM | 15.0 | 16.70 | 19.20 | 1 | 5 | 61.5 | 24.4 |
SMCJ16CA | SMCJ16A | BEP | GEP | 16.0 | 17.80 | 19.70 | 1 | 5 | 57.7 | 26.0 |
SMCJ17CA | SMCJ17A | BER | GER | 17.0 | 18.90 | 21.70 | 1 | 5 | 53.3 | 27.6 |
SMCJ18CA | SMCJ18A | BET | GET | 18.0 | 20.00 | 23.30 | 1 | 5 | 51.4 | 29.2 |
SMCJ20CA | SMCJ20A | BEV | GEV | 20.0 | 22.20 | 25.50 | 1 | 5 | 46.3 | 32.4 |
SMCJ22CA | SMCJ22A | BEX | GEX | 22.0 | 24.40 | 28.00 | 1 | 5 | 42.2 | 35.5 |
SMCJ24CA | SMCJ24A | BEZ | GEZ | 24.0 | 26.70 | 30.70 | 1 | 5 | 38.6 | 38.9 |
SMCJ26CA | SMCJ26A | BFE | GFE | 26.0 | 28.90 | 33.20 | 1 | 5 | 35.6 | 42.1 |
SMCJ28CA | SMCJ28A | BFG | GFG | 28.0 | 31.10 | 35.80 | 1 | 5 | 33.1 | 45.4 |
SMCJ30CA | SMCJ30A | BFK | GFK | 30.0 | 33.30 | 38.30 | 1 | 5 | 31.0 | 48.4 |
SMCJ33CA | SMCJ33A | BFM | GFM | 33.0 | 36.70 | 42.20 | 1 | 5 | 28.1 | 53.3 |
SMCJ36CA | SMCJ36A | BFP | GFP | 36.0 | 40.00 | 46.00 | 1 | 5 | 25.8 | 58.1 |
SMCJ40CA | SMCJ40A | BFR | GFR | 40.0 | 44.40 | 51.10 | 1 | 5 | 23.2 | 64.5 |
SMCJ45CA | SMCJ45A | BFV | GFV | 45.0 | 50.00 | 57.50 | 1 | 5 | 20.6 | 72.7 |
SMCJ48CA | SMCJ48A | BFX | GFX | 48.0 | 53.30 | 58.90 | 1 | 1 | 19.4 | 77.4 |
SMCJ51CA | SMCJ51A | BFZ | GFZ | 51.0 | 56.70 | 65.20 | 1 | 5 | 18.2 | 82.4 |
SMCJ54CA | SMCJ54A | BGE | GGE | 54.0 | 60.00 | 69.00 | 1 | 5 | 17.2 | 87.1 |
SMCJ58CA | SMCJ58A | BGG | GGG | 58.0 | 64.4 | 71.2 | 1 | 5 | 16.0 | 93.0 |
SMCJ60CA | SMCJ60A | BGK | GGK | 60.0 | 66.7 | 73.7 | 1 | 5 | 15.5 | 96 |
SMCJ64CA | SMCJ64A | BGM | GGM | 64.0 | 71.10 | 81.80 | 1 | 5 | 14.6 | 103.0 |
SMCJ70CA | SMCJ70A | BGP | GGP | 70.0 | 77.8 | 95.1 | 1 | 5 | 13.3 | 113.0 |
SMCJ75CA | SMCJ75A | BGR | GGR | 75.0 | 83.3 | 92.1 | 1 | 5 | 12.4 | 121.0 |
SMCJ78CA | SMCJ78A | BGT | GGT | 78.0 | 86.70 | 99.70 | 1 | 5 | 11.4 | 126.0 |
SMCJ85CA | SMCJ85A | BGV | GGV | 85.0 | 94.40 | 108.20 | 1 | 5 | 10.4 | 137.0 |
SMCJ Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | MARKING | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μA) | Maximum Peak Pulse Current Ipp(A) | Maximum Clamping Voltage VC@ I pp(V) | ||
BI | UNI | Min .V | Max .V | |||||||
SMCJ90CA | SMCJ90A | BGX | GGX | 90.0 | 100.00 | 115.50 | 1 | 5 | 10.3 | 146.0 |
SMCJ100CA | SMCJ100A | BGZ | GGZ | 100.0 | 110.00 | 128.00 | 1 | 5 | 9.3 | 162.0 |
SMCJ110CA | SMCJ110A | BHE | GHE | 110.0 | 122.0 | 135.0 | 1 | 5 | 8.5 | 177.0 |
SMCJ120CA | SMCJ120A | BHG | GHG | 120.0 | 133.00 | 153.00 | 1 | 5 | 7.9 | 193.0 |
SMCJ130CA | SMCJ130A | BHK | GHK | 130.0 | 144.0 | 176.0 | 1 | 5 | 6.5 | 231.0 |
SMCJ150CA | SMCJ150A | BHM | GHM | 150.0 | 167.00 | 192.50 | 1 | 5 | 6.2 | 243.0 |
SMCJ160CA | SMCJ160A | BHP | GHP | 160.0 | 178.0 | 197.0 | 1 | 5 | 5.8 | 259.0 |
SMCJ170CA | SMCJ170A | BHR | GHR | 170.0 | 189.00 | 217.50 | 1 | 5 | 5.5 | 275.0 |
SMCJ180CA | SMCJ180A | BHT | GHT | 180.0 | 198.00 | 230.40 | 1 | 5 | 5.1 | 292.0 |
SMCJ200CA | SMCJ200A | BHV | GHV | 200.0 | 220.00 | 256.00 | 1 | 5 | 4.6 | 324.0 |
SMCJ220CA | SMCJ220A | BHX | GHX | 220.0 | 242.00 | 281.60 | 1 | 5 | 4.2 | 356.0 |
SMCJ250CA | SMCJ250A | BHZ | GHZ | 250.0 | 279.00 | 309.00 | 1 | 5 | 3.7 | 405.0 |
SMCJ300CA | SMCJ300A | BJE | GJE | 300.0 | 335.00 | 371.00 | 1 | 5 | 3.1 | 486.0 |
SMCJ350CA | SMCJ350A | BJG | GJG | 350.0 | 391.00 | 432.00 | 1 | 5 | 2.6 | 567.0 |
SMCJ400CA | SMCJ400A | BJK | GJK | 400.0 | 447.00 | 494.00 | 1 | 5 | 2.3 | 648.0 |
1.5KE Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μ A) | Maximum Peak Pulse Current I pp (A) | Maximum Clamping Voltage VC@ I pp(V) | |
Min .V | Max .V | |||||||
1.5KE6.8CA | 1.5KE6.8A | 5.80 | 6.45 | 7.14 | 10 | 1000 | 143.0 | 10.5 |
1.5KE7.5CA | 1.5KE7.5A | 6.40 | 7.13 | 7.88 | 10 | 500 | 132.0 | 11.3 |
1.5KE8.2CA | 1.5KE8.2A | 7.02 | 7.79 | 8.61 | 10 | 200 | 124.0 | 12.1 |
1.5KE10CA | 1.5KE10A | 8.55 | 9.50 | 10.50 | 1 | 10 | 103.0 | 14.5 |
1.5KE11CA | 1.5KE11A | 9.40 | 10.50 | 11.60 | 1 | 5 | 96.0 | 15.6 |
1.5KE12CA | 1.5KE12A | 10.20 | 11.40 | 12.60 | 1 | 5 | 90.0 | 16.7 |
1.5KE13CA | 1.5KE13A | 11.10 | 12.40 | 13.70 | 1 | 5 | 82.0 | 18.2 |
1.5KE15CA | 1.5KE15A | 12.80 | 14.30 | 15.80 | 1 | 5 | 71.0 | 21.2 |
1.5KE16CA | 1.5KE16A | 13.60 | 15.20 | 16.80 | 1 | 5 | 67.0 | 22.5 |
1.5KE18CA | 1.5KE18A | 15.30 | 17.10 | 18.90 | 1 | 5 | 59.5 | 25.2 |
1.5KE20CA | 1.5KE20A | 17.10 | 19.00 | 21.00 | 1 | 5 | 54.0 | 27.7 |
1.5KE22CA | 1.5KE22A | 18.80 | 20.90 | 23.10 | 1 | 5 | 49.0 | 30.6 |
1.5KE24CA | 1.5KE24A | 20.50 | 22.80 | 25.20 | 1 | 5 | 45.0 | 33.2 |
1.5KE27CA | 1.5KE27A | 23.10 | 25.70 | 28.40 | 1 | 5 | 40.0 | 37.5 |
1.5KE30CA | 1.5KE30A | 25.60 | 28.50 | 31.50 | 1 | 5 | 36.0 | 41.4 |
1.5KE33CA | 1.5KE33A | 28.20 | 31.40 | 34.70 | 1 | 5 | 33.0 | 45.7 |
1.5KE36CA | 1.5KE36A | 30.80 | 34.20 | 37.80 | 1 | 5 | 30.0 | 49.9 |
1.5KE39CA | 1.5KE39A | 33.30 | 37.10 | 41.00 | 1 | 5 | 28.0 | 53.9 |
1.5KE43CA | 1.5KE43A | 36.80 | 40.90 | 45.20 | 1 | 5 | 25.3 | 59.3 |
1.5KE47CA | 1.5KE47A | 40.20 | 44.70 | 49.40 | 1 | 5 | 23.2 | 64.8 |
1.5KE51CA | 1.5KE51A | 43.60 | 48.5 | 53.60 | 1 | 5 | 21.4 | 70.1 |
1.5KE56CA | 1.5KE56A | 47.80 | 53.20 | 58.80 | 1 | 5 | 19.5 | 77.0 |
1.5KE62CA | 1.5KE62A | 53.00 | 58.90 | 65.10 | 1 | 5 | 17.7 | 85.0 |
1.5KE68CA | 1.5KE68A | 58.10 | 64.60 | 71.40 | 1 | 5 | 16.3 | 92.0 |
1.5KE75CA | 1.5KE75A | 64.10 | 71.30 | 78.80 | 1 | 5 | 14.6 | 103.0 |
1.5KE82CA | 1.5KE82A | 70.10 | 77.90 | 86.10 | 1 | 5 | 13.3 | 113.0 |
1.5KE91CA | 1.5KE91A | 77.80 | 86.50 | 95.50 | 1 | 5 | 12.0 | 125.0 |
1.5KE100CA | 1.5KE100A | 85.50 | 95.00 | 105.00 | 1 | 5 | 11.0 | 137.0 |
1.5KE120CA | 1.5KE120A | 102.00 | 114.00 | 126.00 | 1 | 5 | 9.1 | 165.0 |
1.5KE130CA | 1.5KE130A | 111.00 | 124.00 | 137.00 | 1 | 5 | 8.4 | 179.0 |
1.5KE150CA | 1.5KE150A | 128.00 | 143.00 | 158.00 | 1 | 5 | 7.2 | 207.0 |
1.5KE160CA | 1.5KE160A | 136.00 | 152.00 | 168.00 | 1 | 5 | 6.8 | 219.0 |
1.5KE180CA | 1.5KE180A | 154.00 | 171.00 | 189.00 | 1 | 5 | 6.1 | 246.0 |
1.5KE200CA | 1.5KE200A | 171.00 | 190.00 | 210.00 | 1 | 5 | 5.5 | 274.0 |
1.5KE250CA | 1.5KE250A | 214.00 | 237.00 | 263.00 | 1 | 5 | 4.5 | 344.0 |
1.5KE300CA | 1.5KE300A | 256.00 | 285.00 | 315.00 | 1 | 5 | 3.8 | 414.0 |
1.5KE350CA | 1.5KE350A | 300.00 | 332.00 | 368.00 | 1 | 5 | 3.2 | 482.0 |
1.5KE Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μ A) | Maximum Peak Pulse Current I pp (A) | Maximum Clamping Voltage VC@ I pp(V) | |
Min .V | Max .V | |||||||
1.5KE400CA | 1.5KE400A | 342.00 | 380.00 | 420.00 | 1 | 5 | 2.8 | 548.0 |
1.5KE440CA | 1.5KE440A | 376.00 | 418.00 | 462.00 | 1 | 5 | 2.6 | 600.0 |
1.5KE480CA | 1.5KE480A | 408.00 | 456.00 | 504.00 | 1 | 5 | 2.3 | 658.0 |
1.5KE540CA | 1.5KE540A | 459.00 | 513.00 | 567.00 | 1 | 5 | 2.0 | 740.0 |
1.5KE550CA | 1.5KE550A | 467.00 | 522.50 | 577.50 | 1 | 5 | 2.0 | 760.0 |
SMDJ Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | MARKING | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μA) | Maximum Peak Pulse Current Ipp(A) | Maximum Clamping Voltage VC@ I pp(V) | ||
BI | UNI | Min .V | Max .V | |||||||
SMDJ5.0CA | SMDJ5.0A | DDE | RDE | 5.0 | 6.4 | 7.00 | 10 | 800 | 326.1 | 9.2 |
SMDJ6.0CA | SMDJ6.0A | DDG | RDG | 6.0 | 6.67 | 7.37 | 10 | 800 | 291.3 | 10.3 |
SMDJ 6.5CA | SMDJ 6.5A | DDK | RDK | 6.5 | 7.22 | 7.98 | 10 | 500 | 267.9 | 11.2 |
SMDJ7.0 CA | SMDJ7.0 A | DDM | PDM | 7.0 | 7.78 | 8.60 | 10 | 200 | 250.0 | 12.0 |
SMDJ 7.5CA | SMDJ 7.5A | DDP | PDP | 7.5 | 8.33 | 9.21 | 1 | 100 | 232.6 | 12.9 |
SMDJ 8.0CA | SMDJ 8.0A | DDR | PDR | 8.0 | 8.89 | 10.12 | 1 | 50 | 220.6 | 13.6 |
SMDJ8.5 CA | SMDJ8.5 A | DDT | PDT | 8.5 | 9.44 | 10.40 | 1 | 20 | 208.4 | 14.4 |
SMDJ9.0 CA | SMDJ9.0 A | DDV | PDV | 9.0 | 10.00 | 11.10 | 1 | 10 | 194.8 | 15.4 |
SMDJ10CA | SMDJ10A | DDX | PDX | 10.0 | 11.10 | 12.30 | 1 | 5 | 176.5 | 17.0 |
SMDJ11CA | SMDJ11A | DDZ | PDZ | 11.0 | 12.20 | 14.80 | 1 | 2 | 164.8 | 18.2 |
SMDJ12CA | SMDJ12A | DEE | PEE | 12.0 | 13.30 | 14.70 | 1 | 2 | 150.8 | 19.9 |
SMDJ13CA | SMDJ13A | DEG | PEG | 13.0 | 14.40 | 15.90 | 1 | 2 | 139.4 | 21.5 |
SMDJ14CA | SMDJ14A | DEK | PEK | 14.0 | 15.60 | 17.20 | 1 | 2 | 129.4 | 23.2 |
SMDJ15CA | SMDJ15A | DEM | PEM | 15.0 | 16.70 | 18.50 | 1 | 2 | 115.4 | 24.4 |
SMDJ16CA | SMDJ16A | DEP | PEP | 16.0 | 17.80 | 19.70 | 1 | 2 | 115.4 | 26.0 |
SMDJ17CA | SMDJ17A | DER | PER | 17.0 | 18.90 | 20.90 | 1 | 2 | 108.7 | 27.6 |
SMDJ18CA | SMDJ18A | DET | PET | 18.0 | 20.00 | 22.10 | 1 | 2 | 102.7 | 29.2 |
SMDJ20CA | SMDJ20A | DEV | PEV | 20.0 | 22.20 | 24.50 | 1 | 2 | 92.6 | 32.4 |
SMDJ22CA | SMDJ22A | DEX | PEX | 22.0 | 24.40 | 26.90 | 1 | 2 | 84.5 | 35.5 |
SMDJ24CA | SMDJ24A | DEZ | PEZ | 24.0 | 26.70 | 29.50 | 1 | 2 | 77.2 | 38.9 |
SMDJ26CA | SMDJ26A | DFE | PFE | 26.0 | 28.90 | 31.90 | 1 | 2 | 71.2 | 42.1 |
SMDJ28CA | SMDJ28A | DFG | PFG | 28.0 | 31.10 | 34.40 | 1 | 2 | 66.2 | 45.4 |
SMDJ30CA | SMDJ30A | DFK | PFK | 30.0 | 33.30 | 36.80 | 1 | 2 | 62.0 | 48.4 |
SMDJ33CA | SMDJ33A | DFM | PFM | 33.0 | 36.70 | 40.60 | 1 | 2 | 56.3 | 53.3 |
SMDJ36CA | SMDJ36A | DFP | PFP | 36.0 | 40.00 | 44.20 | 1 | 2 | 51.6 | 58.1 |
SMDJ40CA | SMDJ40A | DFR | PFR | 40.0 | 44.40 | 49.10 | 1 | 2 | 46.4 | 64.5 |
SMDJ43CA | SMDJ43A | DFT | PFT | 43.0 | 47.80 | 52.80 | 1 | 2 | 69.4 | 43.2 |
SMDJ45CA | SMDJ45A | DFV | PFV | 45.0 | 50.00 | 55.30 | 1 | 2 | 41.2 | 72.7 |
SMDJ48CA | SMDJ48A | DFX | PFX | 48.0 | 53.30 | 58.90 | 1 | 2 | 38.8 | 77.4 |
SMDJ51CA | SMDJ51A | DFZ | PFZ | 51.0 | 56.70 | 62.70 | 1 | 2 | 36.4 | 82.4 |
SMDJ54CA | SMDJ54A | DGE | RGE | 54.0 | 60.00 | 66.30 | 1 | 2 | 34.4 | 87.1 |
SMDJ58CA | SMDJ58A | DGG | PGG | 58.0 | 64.40 | 71.20 | 1 | 2 | 32.0 | 93.0 |
SMDJ60CA | SMDJ60A | DGK | PGK | 60.0 | 66.70 | 73.70 | 1 | 2 | 31.0 | 96 |
SMDJ64CA | SMDJ64A | DGM | PGM | 64.0 | 71.10 | 78.60 | 1 | 2 | 29.2 | 103.0 |
SMDJ70CA | SMDJ70A | DGP | PGP | 70.0 | 77.80 | 86.00 | 1 | 2 | 26.6 | 113.0 |
SMDJ Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | MARKING | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μA) | Maximum Peak Pulse Current Ipp(A) | Maximum Clamping Voltage VC@ I pp(V) | ||
BI | UNI | Min .V | Max .V | |||||||
SMDJ75CA | SMDJ75A | DGR | PGR | 75.0 | 83.30 | 92.10 | 1 | 2 | 24.8 | 121.0 |
SMDJ78CA | SMDJ78A | DGT | PGT | 78.0 | 86.70 | 95.80 | 1 | 2 | 22.8 | 126.0 |
SMDJ85CA | SMDJ85A | DGV | PGV | 85.0 | 94.40 | 104.00 | 1 | 2 | 20.8 | 137.0 |
SMDJ90CA | SMDJ90A | DGX | PGX | 90.0 | 100.00 | 111.00 | 1 | 2 | 20.6 | 146.0 |
SMDJ100CA | SMDJ100A | DGZ | PGZ | 100.0 | 110.00 | 123.00 | 1 | 2 | 18.5 | 162.0 |
SMDJ110CA | SMDJ110A | DHE | PHE | 110.0 | 122.00 | 135.00 | 1 | 2 | 16.9 | 177.0 |
SMDJ120CA | SMDJ120A | DHG | PHG | 120.0 | 133.00 | 147.00 | 1 | 2 | 15.8 | 193.0 |
SMDJ130CA | SMDJ130A | DHK | PHK | 130.0 | 144.00 | 159.00 | 1 | 2 | 13.0 | 231.0 |
SMDJ150CA | SMDJ150A | DHM | PHM | 150.0 | 167.00 | 185.00 | 1 | 2 | 12.4 | 243.0 |
SMDJ160CA | SMDJ160A | DHP | PHP | 160.0 | 178.00 | 197.00 | 1 | 2 | 11.6 | 259.0 |
SMDJ170CA | SMDJ170A | DHR | PHR | 170.0 | 189.00 | 209.00 | 1 | 2 | 11.0 | 275.0 |
3KP Series Electrical Characteristics(TA=25℃ unless otherwise noted
Part Number (Bi) | Part Number (Uni) | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μ A) | Maximum Peak Pulse Current I pp (A) | Maximum Clamping Voltage VC@ I pp(V) | |
Min .V | Max .V | |||||||
3.0KP5.0CA | 3.0KP5.0A | 5.00 | 6.40 | 7.25 | 50 | 5000 | 326.0 | 9.2 |
3.0KP6.0CA | 3.0KP6.0A | 6.00 | 6.67 | 7.37 | 50 | 5000 | 291.0 | 10.3 |
3.0KP8.0A | 3.0KP8.0 | 8.00 | 8.99 | 10.23 | 5 | 150 | 220.6 | 13.6 |
3.0KP10CA | 3.0KP10A | 10.0 | 11.10 | 12.30 | 5 | 15 | 176.5 | 17.0 |
3.0KP11CA | 3.0KP11A | 11.0 | 12.20 | 13.50 | 5 | 15 | 164.8 | 18.2 |
3.0KP12CA | 3.0KP12A | 12.0 | 13.30 | 14.70 | 5 | 2 | 150.8 | 19.9 |
3.0KP15CA | 3.0KP15A | 15.0 | 16.70 | 18.50 | 5 | 2 | 123.0 | 24.4 |
3.0KP16CA | 3.0KP16A | 16.0 | 17.80 | 19.70 | 5 | 2 | 115.4 | 26.0 |
3.0KP18CA | 3.0KP18A | 18.0 | 20.00 | 22.10 | 5 | 2 | 102.7 | 29.2 |
3.0KP20CA | 3.0KP20A | 20.0 | 22.20 | 24.50 | 5 | 2 | 92.6 | 32.4 |
3.0KP22CA | 3.0KP22A | 22.0 | 24.40 | 26.90 | 5 | 2 | 84.5 | 35.5 |
3.0KP24CA | 3.0KP24A | 24.0 | 26.70 | 29.50 | 5 | 2 | 77.1 | 38.9 |
3.0KP26CA | 3.0KP26A | 26.0 | 28.90 | 31.90 | 5 | 2 | 71.3 | 42.1 |
3.0KP28CA | 3.0KP28A | 28.0 | 31.10 | 34.40 | 5 | 2 | 66.1 | 45.4 |
3.0KP30CA | 3.0KP30A | 30.0 | 33.30 | 36.80 | 5 | 2 | 62.0 | 48.4 |
3.0KP33CA | 3.0KP33A | 33.0 | 36.70 | 40.60 | 5 | 2 | 53.3 | 56.3 |
3.0KP36CA | 3.0KP36A | 36.0 | 40.00 | 44.20 | 5 | 2 | 51.6 | 58.1 |
3.0KP40CA | 3.0KP40A | 40.0 | 44.40 | 49.10 | 5 | 2 | 46.5 | 64.5 |
3.0KP43CA | 3.0KP43A | 43.0 | 47.80 | 52.80 | 5 | 2 | 43.2 | 69.4 |
3.0KP48CA | 3.0KP48A | 48.0 | 53.30 | 58.90 | 5 | 2 | 38.8 | 77.4 |
3.0KP51CA | 3.0KP51A | 51.0 | 56.70 | 62.70 | 5 | 2 | 36.4 | 82.4 |
3.0KP54 CA | 3.0KP54 A | 54.0 | 60.00 | 66.30 | 5 | 2 | 34.4 | 87.1 |
3.0KP60CA | 3.0KP60A | 60.0 | 66.70 | 73.70 | 5 | 2 | 31.0 | 96.8 |
3.0KP64CA | 3.0KP64A | 64.0 | 71.10 | 78.60 | 5 | 2 | 29.1 | 103.0 |
3.0KP70CA | 3.0KP70A | 70.0 | 77.80 | 86.00 | 5 | 2 | 26.5 | 113.0 |
3.0KP75CA | 3.0KP75A | 75.0 | 83.30 | 92.10 | 5 | 2 | 24.8 | 121.0 |
3.0KP90CA | 3.0KP90A | 90.0 | 100.00 | 111.00 | 5 | 2 | 20.5 | 146.0 |
3.0KP100CA | 3.0KP100A | 100.0 | 111.00 | 123.00 | 5 | 2 | 18.5 | 162.0 |
3.0KP120CA | 3.0KP120A | 120.0 | 133.00 | 147.00 | 5 | 2 | 15.5 | 193.0 |
3.0KP130CA | 3.0KP130A | 130.0 | 144.00 | 159.00 | 5 | 2 | 14.4 | 209.0 |
3.0KP150CA | 3.0KP150A | 150.0 | 167.00 | 185.00 | 5 | 2 | 12.3 | 243.0 |
3.0KP160CA | 3.0KP160A | 160.0 | 178.00 | 197.00 | 5 | 2 | 11.6 | 259.0 |
3.0KP180CA | 3.0KP180A | 180.0 | 200.00 | 221.00 | 5 | 2 | 10.4 | 289.0 |
3.0KP200CA | 3.0KP200A | 200.0 | 222.00 | 246.00 | 5 | 2 | 9.1 | 329.2 |
3.0KP220CA | 3.0KP220A | 220.0 | 244.00 | 270.00 | 5 | 2 | 8.1 | 371.1 |
5.0SMDJ Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | MARKING | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μA) | Maximum Peak Pulse Current Ipp(A) | Maximum Clamping Voltage VC@ I pp(V) | ||
BI | UNI | Min .V | Max .V | |||||||
5.0SMDJ12A | 5.0SMDJ12CA | 5PEP | 5BEP | 12.0 | 13.30 | 14.70 | 10 | 800 | 252.00 | 19.9 |
5.0SMDJ13A | 5.0SMDJ13CA | 5PEQ | 5BEQ | 13.0 | 14.40 | 15.90 | 10 | 500 | 233.00 | 21.5 |
5.0SMDJ14A | 5.0SMDJ14CA | 5PER | 5BER | 14.0 | 15.60 | 17.20 | 10 | 200 | 216.00 | 23.2 |
5.0SMDJ15A | 5.0SMDJ15CA | 5PES | 5BES | 15.0 | 16.70 | 18.50 | 1 | 100 | 205.00 | 24.4 |
5.0SMDJ16A | 5.0SMDJ16CA | 5PET | 5BET | 16.0 | 17.80 | 19.70 | 1 | 50 | 193.00 | 26.0 |
5.0SMDJ17A | 5.0SMDJ17CA | 5PEU | 5BEU | 17.0 | 18.90 | 20.90 | 1 | 20 | 181.00 | 27.6 |
5.0SMDJ18A | 5.0SMDJ18CA | 5PEV | 5BEV | 18.0 | 20.00 | 22.10 | 1 | 10 | 172.00 | 29.2 |
5.0SMDJ20A | 5.0SMDJ20CA | 5PEW | 5BEW | 20.0 | 22.20 | 24.50 | 1 | 5 | 155.00 | 32.4 |
5.0SMDJ22A | 5.0SMDJ22CA | 5PEX | 5BEX | 22.0 | 24.40 | 26.90 | 1 | 5 | 141.00 | 35.5 |
5.0SMDJ24A | 5.0SMDJ24CA | 5PEZ | 5BEZ | 24.0 | 26.70 | 29.50 | 1 | 5 | 129.00 | 38.9 |
5.0SMDJ26A | 5.0SMDJ26CA | 5PFE | 5BFE | 26.0 | 28.90 | 31.90 | 1 | 5 | 119.00 | 42.1 |
5.0SMDJ28A | 5.0SMDJ28CA | 5PFG | 5BFG | 28.0 | 31.10 | 34.40 | 1 | 5 | 110.00 | 45.4 |
5.0SMDJ30A | 5.0SMDJ30CA | 5PFK | 5BFK | 30.0 | 33.30 | 36.80 | 1 | 5 | 103.00 | 48.4 |
5.0SMDJ33A | 5.0SMDJ33CA | 5PFM | 5BFM | 33.0 | 36.70 | 40.60 | 1 | 5 | 93.90 | 53.3 |
5.0SMDJ36A | 5.0SMDJ36CA | 5PFP | 5BFP | 36.0 | 40.00 | 44.20 | 1 | 5 | 86.10 | 58.1 |
5.0SMDJ40A | 5.0SMDJ40CA | 5PFR | 5BFR | 40.0 | 44.40 | 49.10 | 1 | 5 | 77.60 | 64.5 |
5.0SMDJ43A | 5.0SMDJ43CA | 5PFT | 5BFT | 43.0 | 47.80 | 52.80 | 1 | 5 | 72.10 | 69.4 |
5.0SMDJ45A | 5.0SMDJ45CA | 5PFV | 5BFV | 45.0 | 50.00 | 55.30 | 1 | 5 | 68.80 | 72.7 |
5.0SMDJ48A | 5.0SMDJ48CA | 5PFX | 5BFX | 48.0 | 53.30 | 58.90 | 1 | 5 | 64.70 | 77.4 |
5.0SMDJ51A | 5.0SMDJ51CA | 5PFZ | 5BFZ | 51.0 | 56.70 | 62.70 | 1 | 5 | 60.70 | 82.4 |
5.0SMDJ54A | 5.0SMDJ54CA | 5PGE | 5BGE | 54.0 | 60.00 | 66.30 | 1 | 5 | 57.50 | 87.1 |
5.0SMDJ58A | 5.0SMDJ58CA | 5PGG | 5BGG | 58.0 | 64.40 | 71.20 | 1 | 5 | 53.50 | 93.6 |
5.0SMDJ60A | 5.0SMDJ60CA | 5PGK | 5BGK | 60.0 | 66.70 | 73.70 | 1 | 5 | 51.70 | 96.8 |
5.0SMDJ64A | 5.0SMDJ64CA | 5PGM | 5BGM | 64.0 | 71.10 | 78.60 | 1 | 5 | 48.60 | 103.0 |
5.0SMDJ70A | 5.0SMDJ70CA | 5PGP | 5BGB | 70.0 | 77.80 | 86.00 | 1 | 5 | 44.30 | 113.0 |
5.0SMDJ75A | 5.0SMDJ75CA | 5PGR | 5BGR | 75.0 | 83.30 | 92.10 | 1 | 5 | 41.40 | 121.0 |
5.0SMDJ78A | 5.0SMDJ78CA | 5PGT | 5BGT | 78.0 | 86.70 | 95.80 | 1 | 5 | 39.70 | 126.0 |
5.0SMDJ85A | 5.0SMDJ85CA | 5PGV | 5BGV | 85.0 | 94.40 | 104.00 | 1 | 5 | 36.50 | 137.0 |
5.0SMDJ90A | 5.0SMDJ90CA | 5PGX | 5BGX | 90.0 | 100.00 | 111.00 | 1 | 5 | 34.30 | 146.0 |
5.0SMDJ100A | 5.0SMDJ100CA | 5PGZ | 5BGZ | 100.0 | 111.00 | 123.00 | 1 | 5 | 30.90 | 162.0 |
5.0SMDJ110A | 5.0SMDJ110CA | 5PHE | 5BHE | 110.0 | 122.00 | 135.00 | 1 | 5 | 28.30 | 177.0 |
5.0SMDJ120A | 5.0SMDJ120CA | 5PHG | 5BHG | 120.0 | 133.00 | 147.00 | 1 | 5 | 26.00 | 193.0 |
5.0SMDJ130A | 5.0SMDJ130CA | 5PHK | 5BHK | 130.0 | 144.00 | 159.00 | 1 | 5 | 24.00 | 209.0 |
5.0SMDJ150A | 5.0SMDJ150CA | 5PHM | 5BHM | 150.0 | 167.00 | 185.00 | 1 | 5 | 20.60 | 243.0 |
5.0SMDJ160A | 5.0SMDJ160CA | 5PHP | 5BHB | 160.0 | 178.00 | 197.00 | 1 | 5 | 19.30 | 259.0 |
5.0SMDJ170A | 5.0SMDJ170CA | 5PHR | 5BHR | 170.0 | 189.00 | 209.00 | 1 | 5 | 18.20 | 275.0 |
5KP Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μ A) | Maximum Peak Pulse Current I pp (A) | Maximum Clamping Voltage VC@ I pp(V) | |
Min .V | Max .V | |||||||
5.0KP5.0CA | 5.0KP5.0A | 5.00 | 6.40 | 7.00 | 50 | 5000 | 554.3 | 9.2 |
5.0KP6.0CA | 5.0KP6.0A | 6.00 | 6.67 | 7.37 | 50 | 5000 | 495.1 | 10.3 |
5.0KP8.0A | 5.0KP8.0 | 8.00 | 8.99 | 10.23 | 5 | 150 | 375.0 | 13.6 |
5.0KP10CA | 5.0KP10A | 10.0 | 11.10 | 12.80 | 5 | 15 | 354.2 | 17.0 |
5.0KP11CA | 5.0KP11A | 11.0 | 12.20 | 13.50 | 5 | 15 | 280.2 | 18.2 |
5.0KP12CA | 5.0KP12A | 12.0 | 13.30 | 14.70 | 5 | 2 | 256.3 | 19.9 |
5.0KP15CA | 5.0KP15A | 15.0 | 16.70 | 18.50 | 5 | 2 | 209.0 | 24.4 |
5.0KP16CA | 5.0KP16A | 16.0 | 17.80 | 19.70 | 5 | 2 | 196.2 | 26.0 |
5.0KP18CA | 5.0KP18A | 18.0 | 20.00 | 22.10 | 5 | 2 | 174.7 | 29.2 |
5.0KP20CA | 5.0KP20A | 20.0 | 22.20 | 24.50 | 5 | 2 | 157.4 | 32.4 |
5.0KP22CA | 5.0KP22A | 22.0 | 24.40 | 26.90 | 5 | 2 | 143.7 | 35.5 |
5.0KP24CA | 5.0KP24A | 24.0 | 26.70 | 29.50 | 5 | 2 | 131.1 | 38.9 |
5.0KP26CA | 5.0KP26A | 26.0 | 28.90 | 31.90 | 5 | 2 | 121.1 | 42.1 |
5.0KP28CA | 5.0KP28A | 28.0 | 31.10 | 34.40 | 5 | 2 | 112.3 | 45.4 |
5.0KP30CA | 5.0KP30A | 30.0 | 33.30 | 36.80 | 5 | 2 | 105.4 | 48.4 |
5.0KP33CA | 5.0KP33A | 33.0 | 36.70 | 40.60 | 5 | 2 | 95.7 | 56.3 |
5.0KP36CA | 5.0KP36A | 36.0 | 40.00 | 44.20 | 5 | 2 | 87.7 | 58.1 |
5.0KP40CA | 5.0KP40A | 40.0 | 44.40 | 49.10 | 5 | 2 | 79.1 | 64.5 |
5.0KP43CA | 5.0KP43A | 43.0 | 47.80 | 52.80 | 5 | 2 | 73.5 | 69.4 |
5.0KP48CA | 5.0KP48A | 48.0 | 53.30 | 58.90 | 5 | 2 | 65.9 | 77.4 |
5.0KP51CA | 5.0KP51A | 51.0 | 56.70 | 62.70 | 5 | 2 | 61.9 | 82.4 |
5.0KP54 CA | 5.0KP54 A | 54.0 | 60.00 | 66.30 | 5 | 2 | 58.6 | 87.1 |
5.0KP60CA | 5.0KP60A | 60.0 | 66.70 | 73.70 | 5 | 2 | 52.7 | 96.8 |
5.0KP64CA | 5.0KP64A | 64.0 | 71.10 | 78.60 | 5 | 2 | 49.5 | 103.0 |
5.0KP70CA | 5.0KP70A | 70.0 | 77.80 | 86.00 | 5 | 2 | 45.1 | 113.0 |
5.0KP75CA | 5.0KP75A | 75.0 | 83.30 | 92.10 | 5 | 2 | 42.1 | 121.0 |
5.0KP90CA | 5.0KP90A | 90.0 | 100.00 | 111.00 | 5 | 2 | 34.9 | 146.0 |
5.0KP100CA | 5.0KP100A | 100.0 | 111.00 | 123.00 | 5 | 2 | 31.5 | 162.0 |
5.0KP120CA | 5.0KP120A | 120.0 | 133.00 | 147.00 | 5 | 2 | 26.4 | 193.0 |
5.0KP130CA | 5.0KP130A | 130.0 | 144.00 | 159.00 | 5 | 2 | 24.2 | 209.0 |
5.0KP150CA | 5.0KP150A | 150.0 | 167.00 | 185.00 | 5 | 2 | 21.0 | 243.0 |
5.0KP160CA | 5.0KP160A | 160.0 | 178.00 | 197.00 | 5 | 2 | 19.7 | 259.0 |
5.0KP180CA | 5.0KP180A | 180.0 | 200.00 | 221.00 | 5 | 2 | 17.5 | 292.0 |
5.0KP200CA | 5.0KP200A | 200.0 | 222.00 | 246.00 | 5 | 2 | 15.5 | 329.2 |
5.0KP220CA | 5.0KP220A | 220.0 | 244.00 | 270.00 | 5 | 2 | 13.7 | 371.1 |
15KP Series Electrical Characteristics(TA=25℃ unless otherwise noted)
Part Number (Bi) | Part Number (Uni) | Reverse Stand off Voltage VR (Volts) | Breakdown Voltage VBR (Volts)@IT | Test Current IT(mA) | Maximum Reverse Leakage IR@ VR( μ A) | Maximum Peak Pulse Current I pp (A) | Maximum Clamping Voltage VC@ I pp(V) | |
Min .V | Max .V | |||||||
15KP12CA | 15KP12A | 12.0 | 13.30 | 14.70 | 50 | 10,000 | 658.0 | 22.2 |
15KP15CA | 15KP15A | 15.0 | 16.70 | 18.50 | 50 | 8,000 | 526.0 | 26.9 |
15KP16CA | 15KP16A | 16.0 | 17.80 | 19.70 | 50 | 8,000 | 493.0 | 28.2 |
15KP18CA | 15KP18A | 18.0 | 20.00 | 22.10 | 50 | 8,000 | 439.0 | 34.2 |
15KP20CA | 15KP20A | 20.0 | 22.20 | 24.50 | 50 | 1500 | 396.0 | 37.9 |
15KP22CA | 15KP22A | 22.0 | 24.40 | 26.90 | 50 | 500 | 365.0 | 41.4 |
15KP24CA | 15KP24A | 24.0 | 26.70 | 29.50 | 50 | 150 | 333.0 | 45.0 |
15KP26CA | 15KP26A | 26.0 | 28.90 | 31.90 | 50 | 50 | 308.0 | 48.7 |
15KP28CA | 15KP28A | 28.0 | 31.10 | 34.40 | 50 | 25 | 288.2 | 52.4 |
15KP30CA | 15KP30A | 30.0 | 33.30 | 36.80 | 50 | 15 | 268.7 | 56.2 |
15KP33CA | 15KP33A | 33.0 | 36.70 | 40.60 | 50 | 10 | 249.6 | 60.5 |
15KP36CA | 15KP36A | 36.0 | 40.00 | 44.20 | 50 | 10 | 228.4 | 66.1 |
15KP40CA | 15KP40A | 40.0 | 44.40 | 49.10 | 50 | 10 | 207.4 | 72.8 |
15KP43CA | 15KP43A | 43.0 | 47.80 | 52.80 | 50 | 10 | 196.4 | 76.9 |
15KP48CA | 15KP48A | 48.0 | 53.30 | 58.90 | 50 | 10 | 176.2 | 85.7 |
15KP51CA | 15KP51A | 51.0 | 56.70 | 62.70 | 50 | 10 | 165.0 | 91.5 |
15KP54 CA | 15KP54 A | 54.0 | 60.00 | 66.30 | 50 | 10 | 156.6 | 96.8 |
15KP60CA | 15KP60A | 60.0 | 66.70 | 73.70 | 50 | 10 | 141.0 | 107.1 |
15KP64CA | 15KP64A | 64.0 | 71.10 | 78.60 | 50 | 10 | 130.8 | 115.4 |
15KP70CA | 15KP70A | 70.0 | 77.80 | 86.00 | 50 | 10 | 119.7 | 126.1 |
15KP75CA | 15KP75A | 75.0 | 83.30 | 92.10 | 50 | 10 | 111.8 | 135.1 |
15KP90CA | 15KP90A | 90.0 | 100.00 | 111.00 | 50 | 10 | 94.6 | 159.6 |
15KP100CA | 15KP100A | 100.0 | 111.00 | 123.00 | 50 | 10 | 93.6 | 161.3 |
15KP120CA | 15KP120A | 120.0 | 133.00 | 147.00 | 50 | 10 | 70.5 | 214.3 |
15KP130CA | 15KP130A | 130.0 | 144.00 | 159.00 | 50 | 10 | 65.4 | 230.8 |
15KP150CA | 15KP150A | 150.0 | 167.00 | 185.00 | 50 | 10 | 56.4 | 267.9 |
15KP160CA | 15KP160A | 160.0 | 178.00 | 197.00 | 50 | 10 | 52.3 | 288.5 |
15KP180CA | 15KP180A | 180.0 | 200.00 | 221.00 | 50 | 10 | 47.3 | 319.1 |
15KP200CA | 15KP200A | 200.0 | 222.00 | 246.00 | 50 | 10 | 42.3 | 357.0 |
15KP220CA | 15KP220A | 220.0 | 244.00 | 270.00 | 50 | 10 | 38.3 | 394.7 |
HE Series Electrical Characteristics(TA=25℃ unless otherwise noted)
PART NUMBER | REVERSE STAND-OFF VOLTAGE | BREHEDOW N VOLTAGE MIN.@It | BREHEDOWN VOLTAGE MAX.@It | TEST CURRE NT | MAXIMUM CLAMPING VOLTAGE @Ipp | PEHE PULSE CURRENT@8 *20us wave form | REVERSE LEHEAGE @Vrwm | |
UNI-POLAR | BI-POLAR | VRWM(V) | VBR min(V) | VBR max(V) | IT(mA) | Vc(v) | IPP(A) | IR(uA) |
HE1-076 | HE1-076C | 76 | 85.5 | 94.5 | 10 | 140 | 1000 | 10 |
HE1-380 | HE1-380C | 380 | 401 | 443 | 10 | 577 | 1000 | 10 |
HE6-058 | HE6-058C | 58 | 64 | 70 | 10 | 110 | 6000 | 10 |
HE6-076 | HE6-076C | 76 | 85 | 95 | 10 | 140 | 6000 | 10 |
HE6-170 | HE6-170C | 170 | 189.7 | 210 | 10 | 260 | 6000 | 10 |
HE6-190 | HE6-190C | 190 | 200 | 245 | 10 | 290 | 6000 | 10 |
HE6-240 | HE6-240C | 240 | 254.1 | 280.8 | 10 | 520 | 6000 | 10 |
HE6-380 | HE6-380C | 380 | 401 | 443 | 10 | 520 | 6000 | 10 |
HE6-430 | HE6-430C | 430 | 440 | 490 | 10 | 625 | 6000 | 10 |
HE10-058 | HE10-058C | 58 | 64 | 70 | 10 | 110 | 10000 | 10 |
HE10-076 | HE10-076C | 76 | 85.5 | 94.5 | 10 | 140 | 10000 | 10 |
HE10-170 | HE10-170C | 170 | 189.7 | 210 | 10 | 260 | 10000 | 10 |
HE10-190 | HE10-190C | 190 | 200 | 245 | 10 | 290 | 10000 | 10 |
HE10-220 | HE10-220C | 220 | 230 | 270 | 10 | 330 | 10000 | 10 |
HE10-240 | HE10-240C | 240 | 254.1 | 280.8 | 10 | 340 | 10000 | 10 |
HE10-250 | HE10-250C | 250 | 263.2 | 290.9 | 10 | 413 | 10000 | 20 |
HE10-380 | HE10-380C | 380 | 401 | 443 | 10 | 520 | 10000 | 10 |
HE10-430 | HE10-430C | 430 | 440 | 490 | 10 | 625 | 10000 | 10 |
HE10-530 | HE10-530C | 530 | 559 | 619 | 10 | 725 | 10000 | 10 |
HE15-058 | HE15-058C | 58 | 64 | 70 | 10 | 110 | 15000 | 10 |
HE15-076 | HE15-076C | 76 | 85 | 95 | 10 | 150 | 15000 | 10 |
SE Series Electrical Characteristics(TA=25℃ unless otherwise noted)
MAX PART NUMBER | REVERSE STAND-OFF VOLTAGE | BREAKDOW N VOLTAGE MIN.@It | BREAKDOW N VOLTAGE MAX.@It | TEST CURRE NT | MAXIMUM CLAMPING VOLTAGE @Ipp | Peak pulse current @10*1000us wave form | PEAK PULSE CURRENT@8 *20us wave form | REVERSE LEAKAGE @Vrwm |
BI-POLAR | VRWM(V) | VBR min(V) | VBR max(V) | IT(mA) | Vc(v) | IPP(A) | IPP(A) | IR(uA) |
SE-25 | 22.5 | 23.75 | 26.25 | 1 | 33.3 | 721.8 | 12000 | 100 |
SE-30 | 27 | 28.5 | 31.50 | 1 | 39.9 | 902.3 | 12000 | 150 |
SE-37.5 | 33.75 | 35.63 | 39.38 | 50 | 49.9 | 1403.3 | 14000 | 2000 |
SE-40 | 36 | 38.00 | 42.00 | 1 | 53.2 | 902.3 | 12000 | 150 |
SE-45 | 40.5 | 42.75 | 47.25 | 50 | 59.9 | 1403.3 | 14000 | 2000 |
SE-50 | 45 | 47 | 52.5 | 1 | 66.5 | 721.8 | 12000 | 100 |
SE-51 | 45.9 | 48.45 | 53.55 | 1 | 67.8 | 442.8 | 10000 | 100 |
SE-100 | 90 | 95 | 105 | 1 | 133 | 721.8 | 12000 | 100 |
SE-200 | 180 | 190 | 210 | 1 | 266 | 721.8 | 12000 | 100 |
SE-225 | 202.5 | 213.75 | 236.25 | 1 | 299.3 | 721.8 | 12000 | 100 |
SE-260 | 234 | 247 | 273 | 1 | 345.8 | 462,7 | 10000 | 100 |
SE-277 | 249.3 | 263.15 | 290.85 | 1 | 368.4 | 434.3 | 10000 | 100 |
SE-370 | 333 | 351.5 | 388.5 | 1 | 492.1 | 325.1 | 10000 | 100 |
SE-380 | 342 | 361 | 399 | 1 | 505.4 | 356.2 | 10000 | 100 |
SE-422 | 379.8 | 400.9 | 443.1 | 1 | 561.3 | 228.1 | 8000 | 100 |
SE-450 | 405 | 427.5 | 472.5 | 1 | 598.5 | 721.8 | 12000 | 100 |
SE-470 | 423 | 446.5 | 493.5 | 1 | 625.1 | 204.8 | 8000 | 100 |
*博客内容为网友个人发布，仅代表博主个人观点，如有侵权请联系工作人员删除。
发布文章
